SMART TEXTILES / MOVEMENT SENSING

TracSil^™

Movement Tracking.
Stretchable Silicone Textile.

Discuss your application ↗Check out TracME ↗

MATERIAL TECHNOLOGY · APPLIED TO FABRIC

TracSil textile sensor with integrated conductive sensing paths

SOFT MATERIAL. MOVEMENT DATA.

< 1 mmMaterial thickness

100+Tested washing cycles

10,000Tested strain cycles

View test conditions
and source data ↗

Characteristics

Corrosion Free

Best in class corrosion and sweat resistance.

Ultrathin

Less than 1mm thin

Washable

Endures more than 100 tested washing cycles.

Flexible & Elastic

Works well with fabric as it does not rip nor tear off.

Person running outdoors in smart sensor suit for motion tracking and biomechanical analysis

Why TracSil?

TracSil provides a more convenient solution compared to IMU sensors and camera motion capture. It can be easily worn like clothing, providing immediate data on user movements. TracSil withstands over 10,000 strain cycles, collecting accurate data even during intense physical activity.

Movement Tracking Silicone Textile Does not require skin contact

Two black sensor strips with round metal contacts on black textile

Textile sensor pattern

Enclosed black device module with a blue illuminated ring

Enclosed device module

Spandex fabric

TracSil resistance (blue, ohms) and strain (red, percent) plotted against time in seconds during repeated stretching

Strain Resistance Testing Results

500mm/min

TracSil is designed to endure rigorous usage without noticeable loss of quality, reliably performing through over 10,000 strain cycles.

During durability testing, TracSil was subjected to 0% to 30% strain continuously at a 1-second interval for 10,000 trials, which exceeds the typical strain experienced by the human body, up to 15%.

Furthermore, the following graph demonstrates that even when TracSil is stretched at a rate of 500mm per minute (approximately 8.3mm per second), it continues to maintain reliable impedance.

Based on these comprehensive test results, we anticipate that TracSil sensors can withstand over 100,000 cycles in real-world usage scenarios.

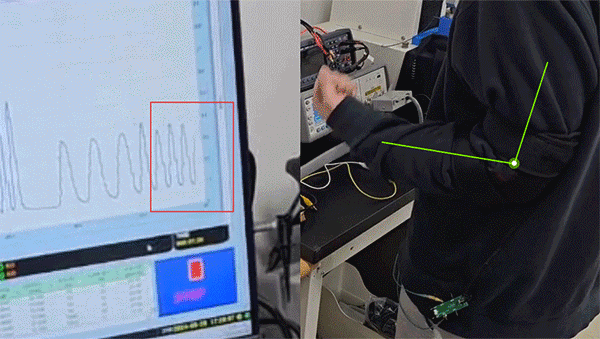

Elbow bending and straightening beside a monitor showing the movement sensor signal

How TracSil Sensor works

The flexible and elastic conductive sensor instantly measures posture whenever the user bends a joint. Made from conductive silicone material, the sensor uses electricity to accurately detect movements and automatically counts exercise repetitions.

Explore the TracME sleeves and app

Program UI/UX for movement data analysis

How the AI works

After collecting human motion data with TracSil, the collected data will be input into Wave's AI system. This will then be analyzed to provide insights into various movement patterns.

The AI system can recognize specific movements associated with certain activities or sports. This can be useful in sports performance analysis, injury prevention, and rehabilitation. It can also detect anomalies in the motion data, which can indicate potential injuries or imbalances and help in the early prevention of injuries. Real-world movement data like this is what Physical AI lacks most.

Read about Physical AI and movement data

Athletic woman in sportswear mid-run, demonstrating dynamic fitness and active lifestyle

Our Background in AI

Activity Prediction AI System using Accelerometer Sensors

As Wave's core AI technology patent, after measuring and collecting real-time data of the user's movements, exercise, and behavior patterns, the collected data is processed through AI algorithms to predict and analyze the user's activity level.

The advantages of this AI System are:

It accurately predicts the user's activity level,

Provides fast responsiveness through real-time data collection and processing,

Provides personalized services by analyzing the user's activity patterns and behavioral characteristics

Learn More About The Smart Textile, ElecSil™

ElecSil™ (Electronic Silicone) is Wave's Conductive Stretchable Silicone Textile which provides solutions for EMS, haptics, and data monitoring. ElecSil works by being applied to fabric on the inner side of apparel, and placed directly on the skin.

Explore ElecSil conductive textile
